General Description
The RT6158H is a synchronous current mode constant on/off time (CMCOT) switching Buck-Boost converter designed to an adjustable output voltage with an input supply that can be above, equal, or under the output voltage.The RT6158H converter is a high efficiency single inductor converter which can operate with wide input voltage 2.5V to 5.5V such as battery which is higher or lower than the output voltage and it can supply the load current up to 3A. This document explains the function and use of the RT6158H evaluation board (EVB), and provides information to related setting of the evaluation board.
Performance Specification Summary
Summary of the RT6158H Evaluation Board performance specificiaiton is provided in Table 1. The ambient temperature is 25°C.
Table 1. RT6158H Evaluation Board Performance Specification Summary
Specification
|
Test Conditions
|
Min
|
Typ
|
Max
|
Unit
|
Input Voltage Range
|
|
2.5
|
--
|
5.5
|
V
|
Output Current
|
|
0
|
--
|
3
|
A
|
Output Voltage Range
|
|
2.1
|
--
|
5.2
|
V
|
Operation Frequency
|
|
--
|
2
|
--
|
MHz
|
IQVIN
|
Non-switching. VIN = 4.2V, VOUT = 3.5V, EN = VIN, Mode = VIN
|
2
|
5
|
8
|
uA
|
ISHDN
|
VIN = 3.5V, EN = L
|
--
|
--
|
1
|
uA
|
Power-up Procedure
Suggestion Required Equipments
- RT6158H Evaluation Board
- DC power supply capable of at least 5.5V and 7A
- Electronic load capable of 6A
- Function Generator
- Oscilloscope
Quick Start Procedures
The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. Do not turn on supplies until all connections are made. When measuring the output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip and ground ring directly across the last output capacitor.
Proper measurement equipment setup and follow the procedure below.
1) Output voltage setting. The output voltage of the RT6158H is adjustable from 2.1V to 5.2V, and can be set by the external divided resistor R1 and R2 on FB pin.
2) Mode selection for PFM or FPWM
3) With power off, connect the input power supply to VIN and GND pins.
4) With power off, connect the electronic load between the VOUT and nearest GND pins.
5) Turn on the power supply at the input. Make sure that the input voltage does not exceeds 5.5V on the EVB.
6) Pull the En pin to high to enable device, When the EN pin is higher than the threshold of logic high, the device starts operation with soft-start.
7) Check for the proper output voltage using a voltmeter.
8) Once the proper output voltage is established, adjust the load within the operating ranges and observe the output voltage regulation, ripple voltage, efficiency and other performance.
Detailed Description of Hardware
Headers Description and Placement
![一張含有 電子產品, 電路, 電子工程, 電子元件 的圖片
自動產生的描述](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image001.png)
Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at evb_service@richtek.com.
Test Points
The EVB is provided with the test points and pin names listed in the table below.
Test Point/
Pin Name
|
Function
|
VIN
|
Input voltage.
|
VOUT
|
Output voltage.
|
GND
|
Ground.
|
EN
|
Enable test point.
|
MODE
|
High for PFM mode, low for FCCM mode. This pin also can be used to synchronize switching frequency with 2.2MHz to 2.6MHz.
|
Bill of Materials
Reference
|
Count
|
Part Number
|
Value
|
Description
|
Package
|
Manufacturer
|
U1
|
1
|
RT6158HWSC
|
RT6158HWSC
|
Buck-Boost Converter
|
WL-CSP-25B 2.07x2.33
|
RICHTEK
|
C1, C2,
C4, C5
|
4
|
GRM155R60J106ME05
|
10µF
|
10µF/6.3V/X5R
|
0402
|
Murata
|
C6
|
1
|
GRM158R61A226ME15D
|
22µF
|
22µF/10V/X5R
|
0402
|
Murata
|
C7
|
1
|
GRM0335C1H560JA01D
|
56pF
|
56pF/50V/C0G
|
0201
|
Murata
|
R1
|
1
|
WR06X1004FTL
|
1M
|
1M, 1%
|
0603
|
WALSIN
|
R2
|
1
|
CR0603F294KP05Z
|
294k
|
294k, 1%
|
0603
|
EVER OHMS
|
L1
|
1
|
DFE252010F-1R0M = P02
|
1µH
|
1µH, ±20%
|
2520
|
Murata
|
Typical Applications
EVB Schematic Diagram
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image002.png)
1. The capacitance values of the input and output capacitors will influence the input and output voltage ripple.
2. MLCC capacitors have degrading capacitance at DC bias voltage, and especially smaller size MLCC capacitors will have much lower capacitance.
Measure Result
VOUT Ripple Voltage
|
VOUT Ripple Voltage
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image003.png)
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image004.png)
|
Power On from EN
|
Power Off from EN
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image005.png)
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image006.png)
|
Load Transient
|
Start-Up Dropout Performance
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image007.png)
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image008.png)
|
Shutdown Current
|
Switching Quiescent Current
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image009.png)
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image010.png)
|

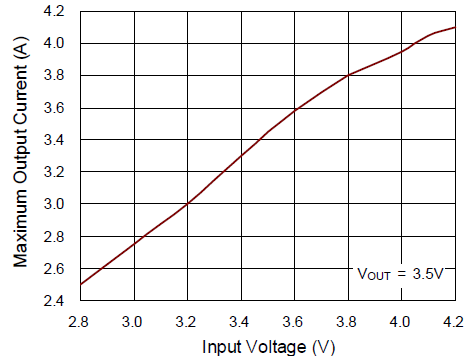

Maximum Output Current vs. Input Voltage
|
Efficiency
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image011.png)
|
![Technical Document Image Preview](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image012.png)
|
Note: When measuring the input or output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip directly across the output capacitor.
Evaluation Board Layout
Figure 1 to Figure 4 are RT6158H Evaluation Board layout. This board size is 70mm x 50mm and is constructed on four-layer PCB.
![一張含有 文字, 電路, 電子產品, 電子工程 的圖片
自動產生的描述](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image013.jpg)
Figure 1. Top View (1st layer)
![一張含有 螢幕擷取畫面, 圓形, Rectangle, 文字 的圖片
自動產生的描述](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image014.jpg)
Figure 2. PCB Layout—Inner Side (2nd Layer)
![一張含有 螢幕擷取畫面, 文字, 圓形, Rectangle 的圖片
自動產生的描述](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image015.jpg)
Figure 3. PCB Layout—Inner Side (3rd Layer)
![一張含有 螢幕擷取畫面, 圖表, 圓形, 文字 的圖片
自動產生的描述](/~/media/Richtek/Design Support/Technical Documentation/UG6158HWSC/EN/Version1/image016.jpg)
Figure 4. Bottom View (4th Layer)
